When constructing its new building in downtown Peterborough, the YWCA of Peterborough, Victoria, and Haliburton decided to incorporate a number of green features, including a 10kW roof mounted solar electric system.

The Y and its architect turned to Generation Solar for advice on how to best incorporate the solar array into the new structure. We recommended the use of standing seam metal roof so as to permit a penetration-free roof-top installation and the idea was endorsed by the Y’s building committee.

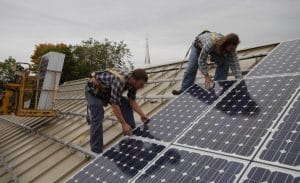

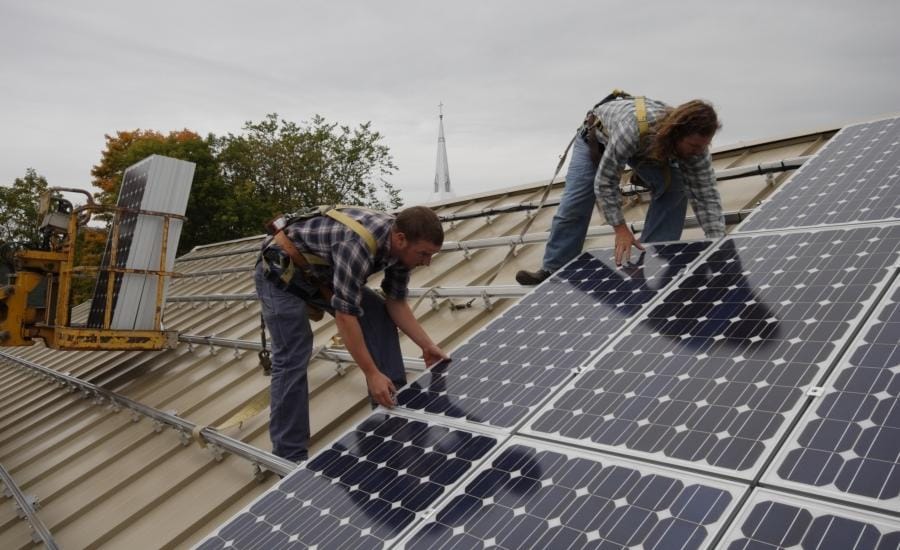

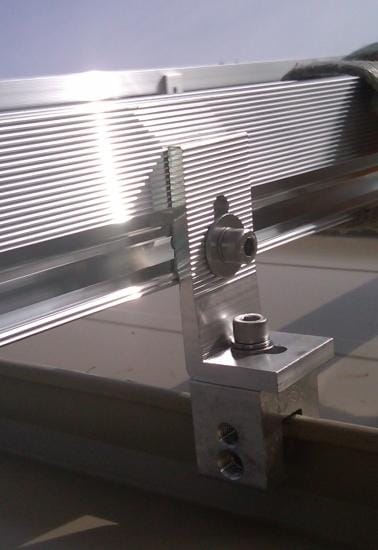

The finished installation made use of standing seam roof anchors by S-5! installed on each roof seam. The roofing installation itself was reinforced to accommodate the solar array based on design work by Generation Solar. Wiring was slipped up under the roof cap for a completely penetration-free installation, ensuring that, for the life of the roof, there will be no leaks associated with the solar installation.

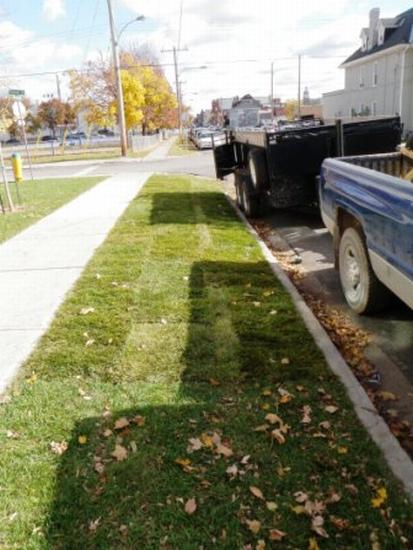

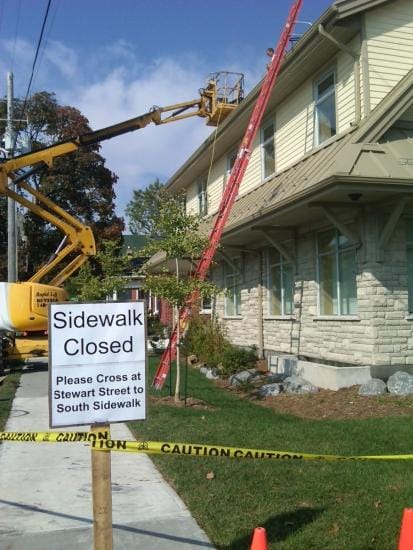

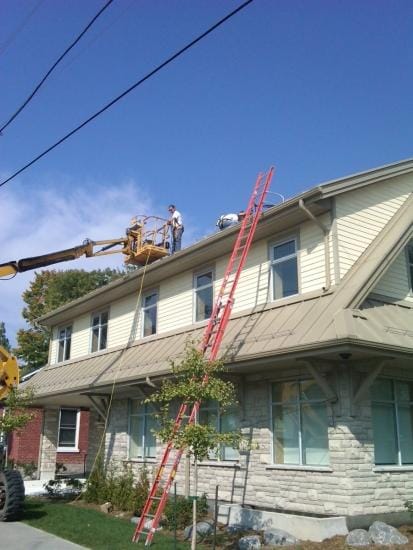

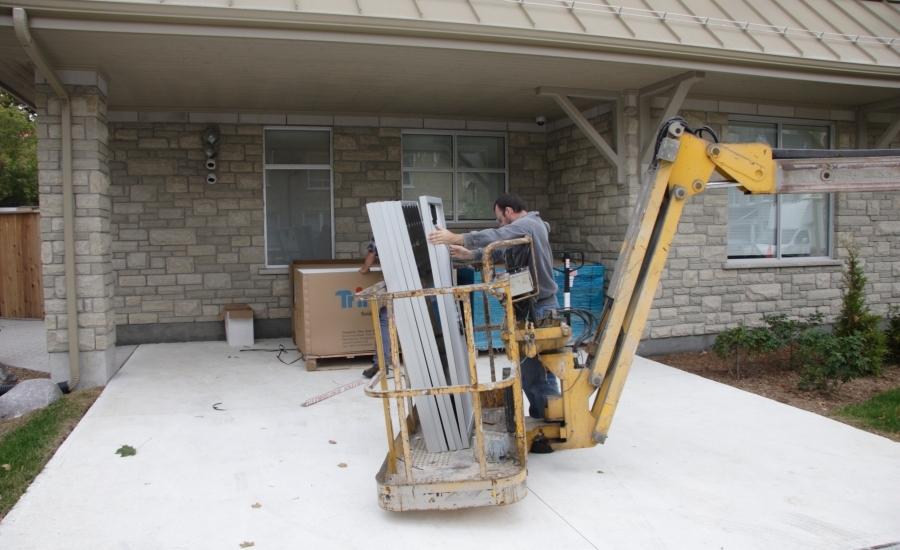

The installation was to be conducted in close proximity to the sidewalk so we secured a permit to close the sidewalk. The articulated boom we used for roof access caused some depressions in the recently landscaped boulevard, so we regraded and re-sodded once we were finished.
